Raspberry Pi Bat Project
Funded project by Naturschutzbund Deutschland (NABU) Landesverband Nordrhein-Westfalen e.V
AK Fledermausschutz Aachen, Düren, Euskirchen (NABU / BUND / LNU)
Supported USB Ultrasonic Mikrophones

Dodotronic Ultramics: www.dodotronic.com

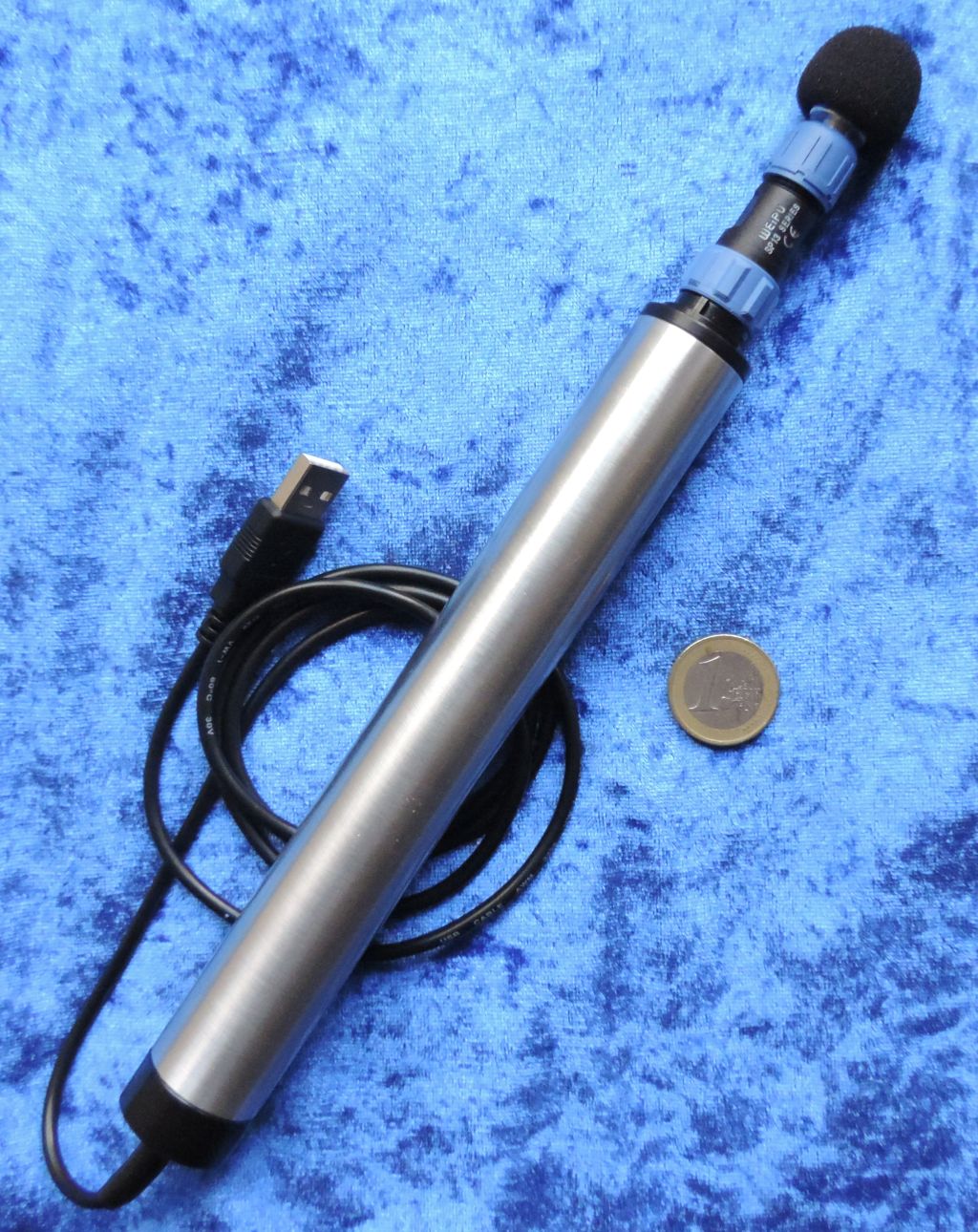

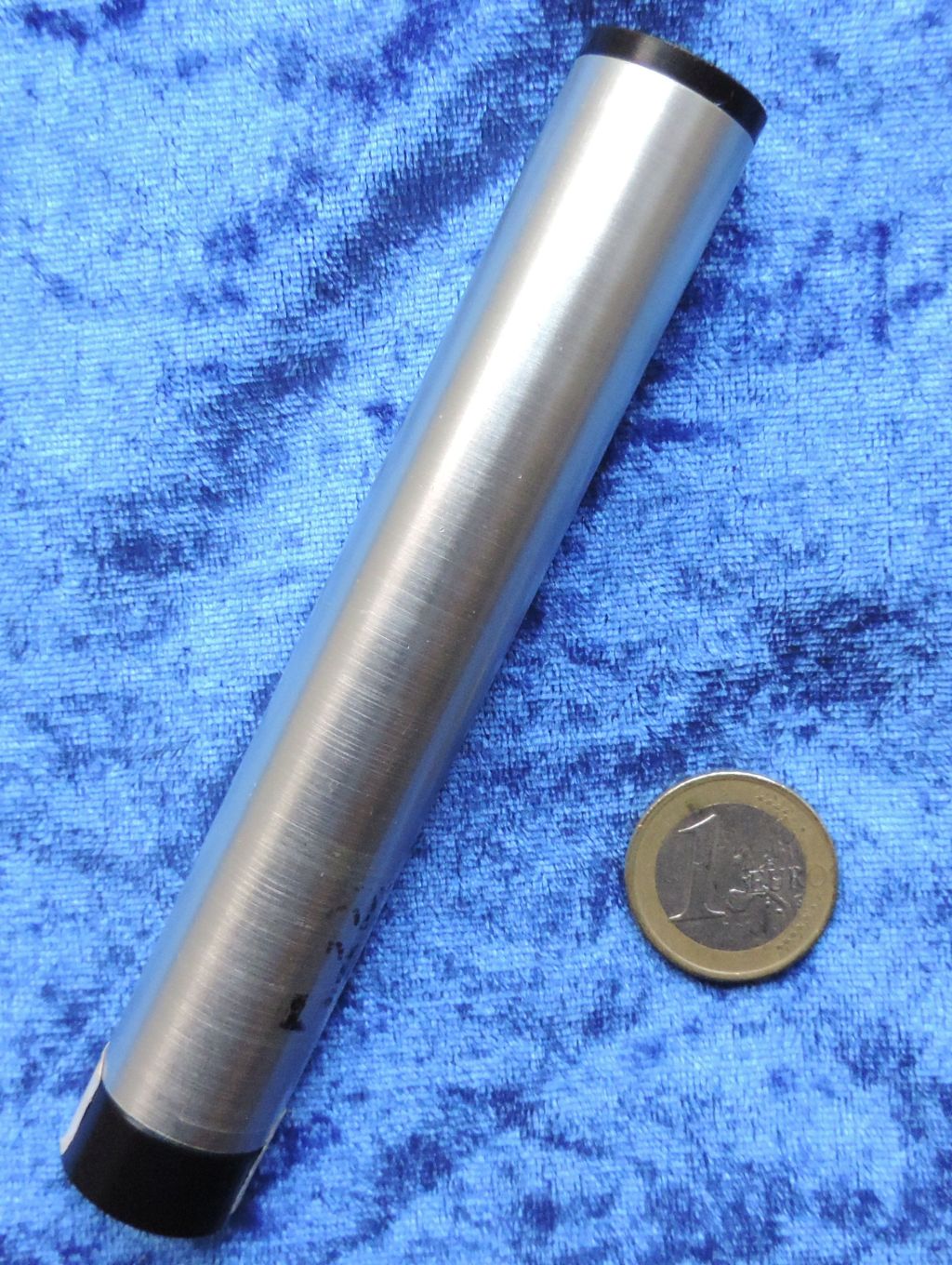

200 kHz / 250 kHz               384 KHz                                  384K BLE                         new 384K EVO













Pettersson: www.batsound.com

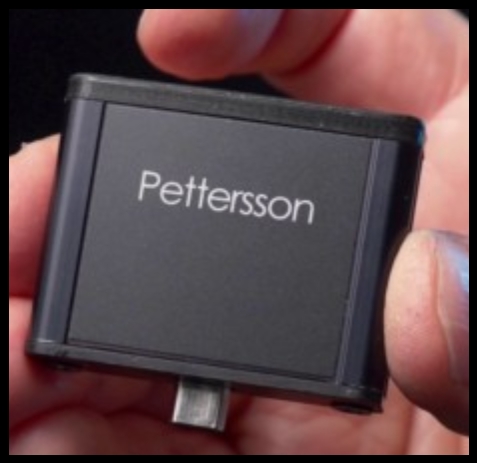

384 kHz / 16 Bit                                        U384 / U250







































1.) Due to power consumption (140mA) this microphone is fine for overnight use in field. Otherwise a powerful powerbank is needed.
2.) If you download (copy) recording data via network oder WLAN during recording there might be interruptions in the recordings because of the high sample rate
3.) Limited suitability for the construction of a batbox due to the design.
Micophone Dodotronic Ultramic 200/250K Dodotronic Ultramic384K/
Ultramic384K BLE

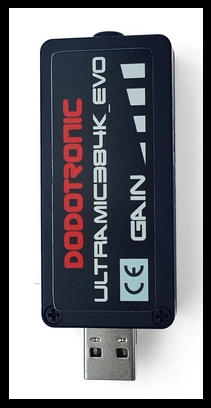

Ultramic384K EVO

Pettersson

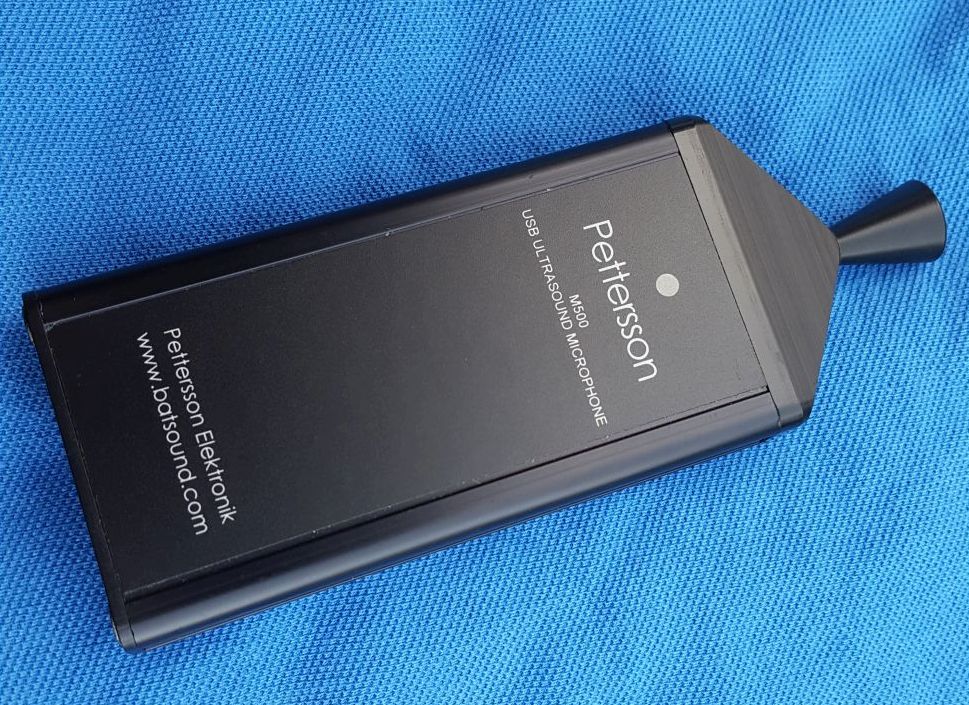

M500-384 1.)
Pettersson
U250

3.)
Pettersson
U384
3.)
Stromverbrauch
in mA
40 25/25 140 20 20
Raspberry Pi Modelle
Pi 1 Model A+ 256/512MB X/X - / - X 2.) - -
Pi 1 Model A+ X X X 2.) - -
Pi 2 Model B X X X X X
Pi 3 Model B X X X X X
Pi 3 Model B+ X X X X X
Pi 3 Model A+ X X X X X
Pi Zero /ZeroW X X X X X
Pi 4 Model B X X X X X
Copyright: AK Fledermausschutz Aachen, Düren, Euskirchen (NABU / BUND / LNU) 2016
